Pure adrenaline

KTM 1090 Adventure

KTM 1090 Adventure 2018

Base Price: 1,030,000.00 PHP*

* Prices excl. LTO registration fee (Approx. Php4,000 to Php7,000), inlc. VAT

Those who want to travel far and fast don't need a lot. Just the best. So we built the KTM 1090 ADVENTURE to be light on its feet, yet fully equipped and easier to ride than ever. Multi-mode traction control and ABS come as standard and the engine is built using the same state-of-the art technology as the KTM 1290 SUPER ADVENTURE models. Even though this V-twin is a little smaller, it still delivers 125hp (92kW). And it's available as a KTM ADVENTURE L that is limited to 70kW, which can also be further reduced to 35kW to fulfill A2 licence requirements. The featherweight chassis and well-balanced suspension team up with prize-winning Metzeler Tourance Next tyres to take you wherever you dare, whenever you want. All fun, no bulk - this bike is made to load up on adrenaline instead.
  • PHO_BIKE_90_RE_1090-adventure-2018-90-re_#SALL_#AEPI_#V1.png
Those who want to travel far and fast don't need a lot. Just the best. So we built the KTM 1090 ADVENTURE to be light on its feet, yet fully equipped and easier to ride than ever. Multi-mode traction control and ABS come as standard and the engine is built using the same state-of-the art technology as the KTM 1290 SUPER ADVENTURE models. Even though this V-twin is a little smaller, it still delivers 125hp (92kW). And it's available as a KTM ADVENTURE L that is limited to 70kW, which can also be further reduced to 35kW to fulfill A2 licence requirements. The featherweight chassis and well-balanced suspension team up with prize-winning Metzeler Tourance Next tyres to take you wherever you dare, whenever you want. All fun, no bulk - this bike is made to load up on adrenaline instead.

* Prices excl. LTO registration fee (Approx. Php4,000 to Php7,000), inlc. VAT

  1. Engine & Exhaust
  2. Chassis
  3. Ergonomics & Comfort
  4. Bodywork & Graphics
  5. Software & Electronics
  6. Accessories & Luggage

01. Engine & Exhaust

Engine

Did you know that KTM easily clocks up 1.5 million kilometers every year while testing their new street bike engines? Advanced, but proven technology make the 1090 twin an excellent engine to use in an adventure bike. Twin spark ignition lowers fuel consumption and emissions and ensures smooth running and superior power from minimum revs, Ride-by-wire ensures perfect application of the plentiful and readily available torque. Traction control (TC) assures sporty yet completely controllable drive on every surface. The slipper clutch prevents rear wheel chatter and reduces required hand force at the lever when changing gears. EURO 4 homologated.

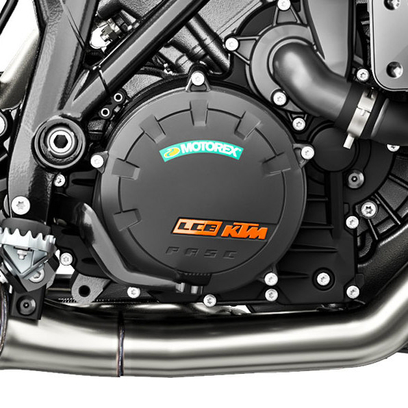

Slipper clutch

Not only does the slipper clutch open when the engine back-torque becomes too high, it also assists when you open up the throttle. The former prevents destabilizing rear wheel chatter when braking sharply or decelerating; the latter reduces the lever force required for changing gear, allowing the clutch to be controlled with one trigger happy finger - saving you energy while riding.

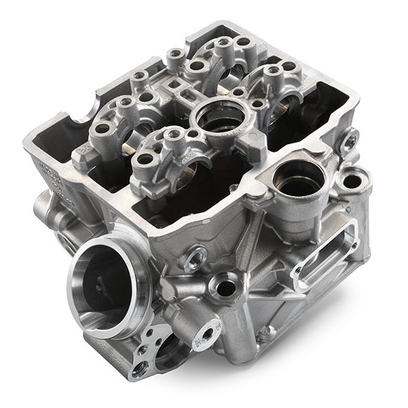

Cylinder Heads

An absolutely key element in the smooth power delivery of the 75° V-twin is each cylinder’s state-of-the-art 4-valve cylinder head. These combine twin plug ignition, flow-optimized ports and a slick low-friction valve drive train with cams from each cylinder’s twin overhead camshafts driving DLC-coated cam followers.

DLC coating

DLC (Diamond-Like Carbon) is an extremely hard, durable and tribologically (i.e. in terms of sliding behavior) particularly well-suited coating, that KTM uses in many parts (f.e. cam followers). Our engines love it.

Twin ignition

The twin plug ignition system controls the two differently sized spark plugs in each cylinder head independently of each other in such a way that more efficient combustion and a smoother, optimally controlled combustion sequence are achieved at all times. The result: even more and even better controlled power, lower fuel consumption, and lower emissions. That’s nice for everyone.

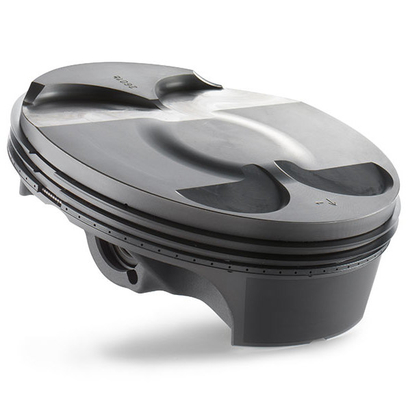

Pistons

The forged piston design of the KTM 1090 ADVENTURE, borrowed from Formula 1 technology, results in a high loading capacity, despite the extremely short and lightweight format. They are five millimeters smaller in diameter compared with those of the KTM 1290 SUPER ADVENTURE models and a whole 21 grams lighter. This reduces reciprocating weight and helps maximize the responsiveness and free-revving nature of the engine. The piston skirts have an additional state-of-the-art, Grafal® finish. Not only does this minimize friction, it is also particularly hard-wearing which makes a positive contribution to durability.

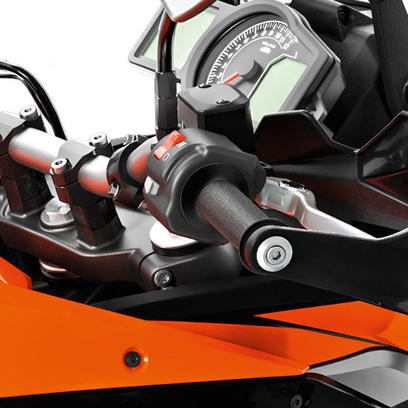

Ride-by-wire

It’s the guarantee of a smooth throttle response, more than simply the absence of a throttle cable. The KTM 1090 ADVENTURE's ride-by-wire system ensures perfect application of the readily available and plentiful torque. It also electronically translates the throttle commands of the rider into throttle valve positions perfectly suited to the riding conditions. The RBW system is fully compliant with the strict DIN 26262 safety standard from the automobile sector.

Long service intervals

A unique mix of the highest quality components combined with a fully developed and reliable engine allows extremely long service intervals of 15,000 km. That’s a lot of adventures.

Power-to-weight ratio

The combination of lightweight chassis engineering and a compact but powerful engine take the KTM 1090 ADVENTURE to the top of its class in terms of power-to-weight ratio and ride dynamics. Its weight of only 228 kg, while carrying a substantial 23 liters of fuel, makes the KTM 1090 ADVENTURE – in typical KTM style – one of the lightest motorcycles in its segment. Add an outstanding geometry, well-balanced stiffness distribution and high quality suspension components and you end up with one vivacious bike. This also boosts safety, since it is far easier to fling a lightweight, nimble motorcycle around a source of danger than a heavy one.

Airfilter

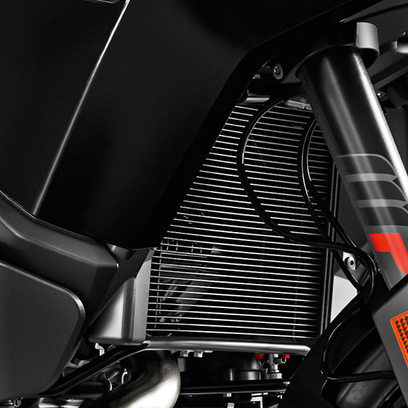

Cooling

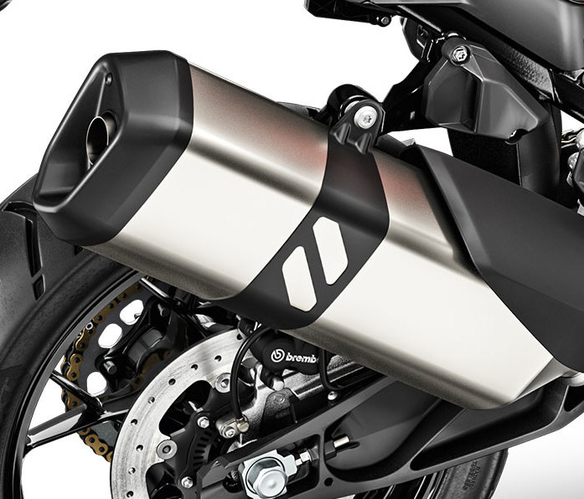

Exhaust

CNC-parts

Engine

Did you know that KTM easily clocks up 1.5 million kilometers every year while testing their new street bike engines? Advanced, but proven technology make the 1090 twin an excellent engine to use in an adventure bike. Twin spark ignition lowers fuel consumption and emissions and ensures smooth running and superior power from minimum revs, Ride-by-wire ensures perfect application of the plentiful and readily available torque. Traction control (TC) assures sporty yet completely controllable drive on every surface. The slipper clutch prevents rear wheel chatter and reduces required hand force at the lever when changing gears. EURO 4 homologated.

Slipper clutch

Not only does the slipper clutch open when the engine back-torque becomes too high, it also assists when you open up the throttle. The former prevents destabilizing rear wheel chatter when braking sharply or decelerating; the latter reduces the lever force required for changing gear, allowing the clutch to be controlled with one trigger happy finger - saving you energy while riding.

Cylinder Heads

An absolutely key element in the smooth power delivery of the 75° V-twin is each cylinder’s state-of-the-art 4-valve cylinder head. These combine twin plug ignition, flow-optimized ports and a slick low-friction valve drive train with cams from each cylinder’s twin overhead camshafts driving DLC-coated cam followers.

DLC coating

DLC (Diamond-Like Carbon) is an extremely hard, durable and tribologically (i.e. in terms of sliding behavior) particularly well-suited coating, that KTM uses in many parts (f.e. cam followers). Our engines love it.

Twin ignition

The twin plug ignition system controls the two differently sized spark plugs in each cylinder head independently of each other in such a way that more efficient combustion and a smoother, optimally controlled combustion sequence are achieved at all times. The result: even more and even better controlled power, lower fuel consumption, and lower emissions. That’s nice for everyone.

Pistons

The forged piston design of the KTM 1090 ADVENTURE, borrowed from Formula 1 technology, results in a high loading capacity, despite the extremely short and lightweight format. They are five millimeters smaller in diameter compared with those of the KTM 1290 SUPER ADVENTURE models and a whole 21 grams lighter. This reduces reciprocating weight and helps maximize the responsiveness and free-revving nature of the engine. The piston skirts have an additional state-of-the-art, Grafal® finish. Not only does this minimize friction, it is also particularly hard-wearing which makes a positive contribution to durability.

Ride-by-wire

It’s the guarantee of a smooth throttle response, more than simply the absence of a throttle cable. The KTM 1090 ADVENTURE's ride-by-wire system ensures perfect application of the readily available and plentiful torque. It also electronically translates the throttle commands of the rider into throttle valve positions perfectly suited to the riding conditions. The RBW system is fully compliant with the strict DIN 26262 safety standard from the automobile sector.

Long service intervals

A unique mix of the highest quality components combined with a fully developed and reliable engine allows extremely long service intervals of 15,000 km. That’s a lot of adventures.

Power-to-weight ratio

The combination of lightweight chassis engineering and a compact but powerful engine take the KTM 1090 ADVENTURE to the top of its class in terms of power-to-weight ratio and ride dynamics. Its weight of only 228 kg, while carrying a substantial 23 liters of fuel, makes the KTM 1090 ADVENTURE – in typical KTM style – one of the lightest motorcycles in its segment. Add an outstanding geometry, well-balanced stiffness distribution and high quality suspension components and you end up with one vivacious bike. This also boosts safety, since it is far easier to fling a lightweight, nimble motorcycle around a source of danger than a heavy one.

Airfilter

Cooling

Exhaust

CNC-parts

Chassis

02. Chassis

Frame

The chrome-molybdenum steel trellis frame makes a major contribution to the bike’s excellent chassis geometry. It’s a rugged, laser-cut, robot-welded thing of beauty with a glorious surface finish. And at only 9.8 kg, it helps to keep the total, unfueled weight under 210 kg. 205, to be precise. Every kg counts.

Swingarm

The die-cast, open-lattice swingarm is not only particularly light, it's also precisely manufactured. The design has been optimized for stiffness and stability while still offering excellent flex characteristics.

Wheels

Tubeless allroad tires fitted on alloy rims, manufactured in a low-pressure die casting process. Not only do these featherweight wheels make the bike lighter overall, they also minimize the unsprung masses and moment of inertia, with a positive impact on handling and ride dynamics. The KTM 1090 ADVENTURE gets a set of extremely grippy and durable Metzeler Tourance Next tires sized at 110/80-R19 and 150/70-R17. They are the perfect wingmen for this corner stormer.

Suspension

With meticulously tuned factory settings, the robust upside-down telescopic fork with 43 mm internal tube diameter and the shock absorber from WP Suspension need no extensive adjustments to help you get the most from this versatile bike. The shock absorber is, however, fully adjustable for preload and rebound to accommodate different loads. Suspension travel: 185/190 mm

Brakes

Precise. Powerful. Stunning. Just as you would expect from a set of Brembo brakes. Up front you’ll find twin 320 mm discs, radially mounted, 4-piston fixed calipers. At the rear, excess speed is taken care of by a generously dimensioned 267 mm disc. And in case of an emergency, Bosch’s two-channel 9M+ ABS is there to save the day.

Fuel tank

The impressive 23-liter tank capacity gives a comfortable range for long distance traveling. How does 350 kilometers on a tank sound? Like fun, we reckon.

CNC-parts

Chassis

Frame

The chrome-molybdenum steel trellis frame makes a major contribution to the bike’s excellent chassis geometry. It’s a rugged, laser-cut, robot-welded thing of beauty with a glorious surface finish. And at only 9.8 kg, it helps to keep the total, unfueled weight under 210 kg. 205, to be precise. Every kg counts.

Chassis

Swingarm

The die-cast, open-lattice swingarm is not only particularly light, it's also precisely manufactured. The design has been optimized for stiffness and stability while still offering excellent flex characteristics.

Chassis

Wheels

Tubeless allroad tires fitted on alloy rims, manufactured in a low-pressure die casting process. Not only do these featherweight wheels make the bike lighter overall, they also minimize the unsprung masses and moment of inertia, with a positive impact on handling and ride dynamics. The KTM 1090 ADVENTURE gets a set of extremely grippy and durable Metzeler Tourance Next tires sized at 110/80-R19 and 150/70-R17. They are the perfect wingmen for this corner stormer.

Chassis

Suspension

With meticulously tuned factory settings, the robust upside-down telescopic fork with 43 mm internal tube diameter and the shock absorber from WP Suspension need no extensive adjustments to help you get the most from this versatile bike. The shock absorber is, however, fully adjustable for preload and rebound to accommodate different loads. Suspension travel: 185/190 mm

Chassis

Brakes

Precise. Powerful. Stunning. Just as you would expect from a set of Brembo brakes. Up front you’ll find twin 320 mm discs, radially mounted, 4-piston fixed calipers. At the rear, excess speed is taken care of by a generously dimensioned 267 mm disc. And in case of an emergency, Bosch’s two-channel 9M+ ABS is there to save the day.

Chassis

Fuel tank

The impressive 23-liter tank capacity gives a comfortable range for long distance traveling. How does 350 kilometers on a tank sound? Like fun, we reckon.

Chassis

CNC-parts

03. Ergonomics & Comfort

Handlebar

Two handlebar clamping positions: horizontal +/- 10 mm.

Hand levers

Adjustable hand levers.

Footpegs

Two footpeg positions: 10 mm up and back (diagonally).

Seats

This is where you’ll - hopefully - spend a lot of time, so the seat has to provide support, feedback and freedom of movement. Thanks to KTM’s state-of-the-art 3D foam padding, the KTM 1090 ADVENTURE has your back. No matter if your ride is to the local shops or the ones across the Alps, both rider and passenger will get there in comfort.

Windshield

The windshield’s height can be changed as quickly as you can change your mind, thanks to the easily operated clamping mechanism (+25 mm).

Handlebar

Two handlebar clamping positions: horizontal +/- 10 mm.

Hand levers

Adjustable hand levers.

Footpegs

Two footpeg positions: 10 mm up and back (diagonally).

Seats

This is where you’ll - hopefully - spend a lot of time, so the seat has to provide support, feedback and freedom of movement. Thanks to KTM’s state-of-the-art 3D foam padding, the KTM 1090 ADVENTURE has your back. No matter if your ride is to the local shops or the ones across the Alps, both rider and passenger will get there in comfort.

Windshield

The windshield’s height can be changed as quickly as you can change your mind, thanks to the easily operated clamping mechanism (+25 mm).

04. Bodywork & Graphics

Trim parts / decals

Dashboard

The KTM 1090 ADVENTURE supplies its rider with all necessary and desirable information on a state-of-the-art, clearly arranged instrument cluster from automotive manufacturer VDO. Core data is displayed on a central gauge that consists of an analog rev counter with an integrated, adjustable shift light and an LCD display. This display is dominated by a digital speedometer and supplemented with a digital clock, a gear indicator, bar graphs for coolant temperature and fuel level plus the display for the selected riding mode. A second LCD display is positioned to the left of the central instrument, which displays the adjustable features: Favorites page, Ride modes, Riding conditions page for additional info, e.g. outside temperature, onboard voltage, various trips, average speed, average and current fuel consumption, range and the distance to your next service. Everything is tidy, clean, clear, intuitive and simple to operate – even on the go.

Menu switch

Different modes for the various assistance systems can be selected using a menu switch on the left side of the handlebar. It's very simple and intuitive: "up" and "down" through the menu selection, select the desired menu item with the left button, confirm it with the right. Job done.

Carbon

Trim parts / decals

Dashboard

The KTM 1090 ADVENTURE supplies its rider with all necessary and desirable information on a state-of-the-art, clearly arranged instrument cluster from automotive manufacturer VDO. Core data is displayed on a central gauge that consists of an analog rev counter with an integrated, adjustable shift light and an LCD display. This display is dominated by a digital speedometer and supplemented with a digital clock, a gear indicator, bar graphs for coolant temperature and fuel level plus the display for the selected riding mode. A second LCD display is positioned to the left of the central instrument, which displays the adjustable features: Favorites page, Ride modes, Riding conditions page for additional info, e.g. outside temperature, onboard voltage, various trips, average speed, average and current fuel consumption, range and the distance to your next service. Everything is tidy, clean, clear, intuitive and simple to operate – even on the go.

Menu switch

Different modes for the various assistance systems can be selected using a menu switch on the left side of the handlebar. It's very simple and intuitive: "up" and "down" through the menu selection, select the desired menu item with the left button, confirm it with the right. Job done.

Carbon

05. Software & Electronics

Traction Control (TC)

Developed in close collaboration with Bosch, this safety feature reacts in a matter of milliseconds if the rear wheel tends to spin out of control. As smooth as it is quick, the system closes the throttle valves in order to regain grip. Compelling yet completely controllable drive on all surfaces is guaranteed. As standard, the traction control (TC) offers four different ride modes, selected using the multi-functional switch on the left handlebar grip. ‘Sport’ allows respectable drifts and a perceptible amount of slippage, ‘Street’ keeps things smooth for comfortable, controllable riding with full engine power, ‘Rain’ is all about early intervention and maximum grip in the wet and ‘Offroad’ allows up to 100% of slippage - i.e. double the wheel speed - for ambitious offroad use. And that’s not the end of it. Daredevils, we give you: the off-switch.

ABS

The Bosch two-channel 9M+ anti-lock braking system on the KTM 1090 ADVENTURE R ensures extremely short braking distances with optimum vehicle control. The system modulates brake pressure in such a way that wheel lock-up is prevented and the bikes tendency to lift the rear is minimized when braking hard on surfaces with good grip. In its ‘Offroad’ mode, only the rear wheel is freed from ABS intervention, putting the rider in control of braking slides. Feeling pro? Just deactivate the system entirely.

ATIR (AUTOMATIC TURN INDICATOR RESET)

After 10 seconds of movement and 150 meters of riding distance, the turn indicator will stop automatically. If pressed meanwhile, it counts from zero again. A big improvement in terms of safety, as it is now impossible to forget to reset the indicators.

Traction Control (TC)

Developed in close collaboration with Bosch, this safety feature reacts in a matter of milliseconds if the rear wheel tends to spin out of control. As smooth as it is quick, the system closes the throttle valves in order to regain grip. Compelling yet completely controllable drive on all surfaces is guaranteed. As standard, the traction control (TC) offers four different ride modes, selected using the multi-functional switch on the left handlebar grip. ‘Sport’ allows respectable drifts and a perceptible amount of slippage, ‘Street’ keeps things smooth for comfortable, controllable riding with full engine power, ‘Rain’ is all about early intervention and maximum grip in the wet and ‘Offroad’ allows up to 100% of slippage - i.e. double the wheel speed - for ambitious offroad use. And that’s not the end of it. Daredevils, we give you: the off-switch.

ABS

The Bosch two-channel 9M+ anti-lock braking system on the KTM 1090 ADVENTURE R ensures extremely short braking distances with optimum vehicle control. The system modulates brake pressure in such a way that wheel lock-up is prevented and the bikes tendency to lift the rear is minimized when braking hard on surfaces with good grip. In its ‘Offroad’ mode, only the rear wheel is freed from ABS intervention, putting the rider in control of braking slides. Feeling pro? Just deactivate the system entirely.

ATIR (AUTOMATIC TURN INDICATOR RESET)

After 10 seconds of movement and 150 meters of riding distance, the turn indicator will stop automatically. If pressed meanwhile, it counts from zero again. A big improvement in terms of safety, as it is now impossible to forget to reset the indicators.

06. Accessories & Luggage

NUVIZ Motorcycle Head-Up Display

NUVIZ is the first fully-integrated head-up display (HUD) designed specifically for the needs of motorcycle riders. It displays customizable information in the rider’s natural line of sight and features an intuitive eyes-on-the-road handlebar controller and built-in HD action camera. NUVIZ is intended to be used in all conditions, including riding in the rain.NUVIZ brings together all of the important functions of your navigation, communication, and media devices into a single device, allowing riders to stay connected, but not distracted. NUVIZ includes an HD camera that shoots stills and video, and can be updated as new features become available in the future.In order to take the NUVIZ device into use, you need either an Android device with Android OS 4.4.2/KitKat (or newer) or iPhone/iPad with iOS 10.2 (or newer). More information on supported products can be found at http://www.ridenuviz.com/support.

Navigation

Luggage

Luggage carriers

As an easy way to mount your cases, we give you the luggage carriers as standard.

NUVIZ Motorcycle Head-Up Display

NUVIZ is the first fully-integrated head-up display (HUD) designed specifically for the needs of motorcycle riders. It displays customizable information in the rider’s natural line of sight and features an intuitive eyes-on-the-road handlebar controller and built-in HD action camera. NUVIZ is intended to be used in all conditions, including riding in the rain.NUVIZ brings together all of the important functions of your navigation, communication, and media devices into a single device, allowing riders to stay connected, but not distracted. NUVIZ includes an HD camera that shoots stills and video, and can be updated as new features become available in the future.In order to take the NUVIZ device into use, you need either an Android device with Android OS 4.4.2/KitKat (or newer) or iPhone/iPad with iOS 10.2 (or newer). More information on supported products can be found at <a href="http://www.ridenuviz.com/support"> http://www.ridenuviz.com/support</a>.

Navigation

Luggage

Luggage carriers

As an easy way to mount your cases, we give you the luggage carriers as standard.

Technical Details

Engine

  • Primary drive 40:76
  • Torque 109 Nm
  • Transmission 6-speed
  • Cooling Liquid cooled
  • Secondary gear ratio 17:42
  • Power in KW 92 kW
  • Starter Electric starter
  • Stroke 63 mm
  • Bore 103 mm
  • Clutch PASC (TM) slipper clutch, hydraulically actuated
  • CO2 emissions 131 g/km
  • Displacement 1050 cm³
  • EMS Keihin EMS with RBW, twin ignition
  • Design 2-cylinder, 4-stroke, V 75°
  • Fuel consumption 5.61 l/100 km
  • Lubrication Forced oil lubrication with 3 oil pumps
  • Power in hp 123 hp

Chassis

  • Tank capacity (approx.) 23 l
  • ABS Bosch 9M+ two channel (disengageable, offroad mode optional)
  • Front brake disc diameter 320 mm
  • Rear brake disc diameter 267 mm
  • Front brake 2 x Brembo four-piston radial fixed calliper, brake discs, floating
  • Rear brake Brembo twin-piston fixed calliper, brake disc
  • Chain X-Ring 5/8 x 5/16"
  • dry weight 205 kg
  • Frame design Chromium-Molybdenum steel trellis frame, powder coated
  • Front suspension WP upside-down Ø 43 mm
  • Ground clearance 220 mm
  • Rear suspension WP monoshock
  • Seat height 850 mm
  • Steering head angle 64 °
  • Suspension travel (front) 185 mm
  • Suspension travel (rear) 190 mm
  • Wheelbase 1560 ± 15 mm
