THE SPAWN OF THE BEAST

KTM 125 Duke

KTM 125 Duke 2019

Base Price: 5,990,000.00 KRW*

The KTM 125 DUKE may be the entry-level bike of the range, but it isn't here to play games. It's built with the same attitude as the bigger bikes – and it shows. It's no holds barred with this urban warrior, complete with an LED headlight and TFT display. This 4-stroke single cylinder has fuel-injection and a 6-speed transmission to deliver class-leading performance with low fuel consumption to keep you riding longer.
  • PHO_BIKE_90_RE_125-DUKE-2017-WHITE-90-RE_#SALL_#AEPI_#V1.png
The KTM 125 DUKE may be the entry-level bike of the range, but it isn't here to play games. It's built with the same attitude as the bigger bikes – and it shows. It's no holds barred with this urban warrior, complete with an LED headlight and TFT display. This 4-stroke single cylinder has fuel-injection and a 6-speed transmission to deliver class-leading performance with low fuel consumption to keep you riding longer.
  1. Engine & Exhaust
  2. Chassis
  3. Ergonomics & Comfort
  4. Bodywork & Graphics
  5. Software & Electronics
  6. Accessories & Luggage

01. Engine & Exhaust

A1 Power
A1 Power

Engine

The KTM 125 DUKE engine not only delivers arm-wrenching torque and hair-raising acceleration, but also good manners in everyday use, all with outstanding fuel economy. This lightweight, compact engine packs a good punch too, with a respectable 11 kW (15 hp). Thanks to the ingenious intake design and the meticulous fuel injection system, the KTM 125 DUKE is ready and waiting to tear-up the streets and the circuits alike.

Power & Torque

A bike as compact and nimble as this one, deserves to pack a solid punch. With 11 kW (15 hp) it is right at the limit of the A1 driver’s license, making it the sportiest option out there for A1 riders. Thanks to the ingenious intake and exhaust system, the 33 mm throttle body and the meticulous fuel injection system, this strong stroker is ready to leave the rest of the city traffic behind at the twist of your wrist.

Cylinder head

Just like the 1290 SUPER DUKE R, the four valves in the cylinder head of the KTM 125 DUKE are actuated by two overhead camshafts and ultra-hard, carbon coated cam followers. The result is an ultra-reliable, long-lasting engine that produces next-level power.

Injection

The intricate engine design, state-of-the-art injection electronics and close-ratio, 6-speed transmission not only help the KTM 125 DUKE to achieve white-knuckle performance, but also extremely low fuel consumption. At the same time, thanks to the regulated catalytic converter, it produces minimal emissions, even when riding at full throttle.

A1 license

The KTM 125 DUKE matches all the A1 driver´s license requirements and thanks to its high power-to-weight ratio, it’s one of the most dynamic options out there for new riders.

Gritty growl
Gritty growl

Exhaust

The KTM 125 DUKE’s lightweight and precision-crafted exhaust system comprises of a side exhaust, link pipe and silencer. The three-chamber silencer has been positioned close to the bike’s overall center of gravity, improving balance and handling, whilst also delivering smooth, instant and beast-like power. Oh, and it looks angry as hell too.

Flowing performance

Airfilter

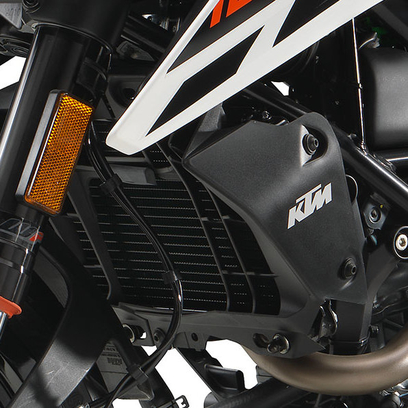

Cooling

Precision parts

CNC-parts

A1 Power
A1 Power

Engine

The KTM 125 DUKE engine not only delivers arm-wrenching torque and hair-raising acceleration, but also good manners in everyday use, all with outstanding fuel economy. This lightweight, compact engine packs a good punch too, with a respectable 11 kW (15 hp). Thanks to the ingenious intake design and the meticulous fuel injection system, the KTM 125 DUKE is ready and waiting to tear-up the streets and the circuits alike.

A1 Power

Power & Torque

A bike as compact and nimble as this one, deserves to pack a solid punch. With 11 kW (15 hp) it is right at the limit of the A1 driver’s license, making it the sportiest option out there for A1 riders. Thanks to the ingenious intake and exhaust system, the 33 mm throttle body and the meticulous fuel injection system, this strong stroker is ready to leave the rest of the city traffic behind at the twist of your wrist.

Cylinder head

Just like the 1290 SUPER DUKE R, the four valves in the cylinder head of the KTM 125 DUKE are actuated by two overhead camshafts and ultra-hard, carbon coated cam followers. The result is an ultra-reliable, long-lasting engine that produces next-level power.

Injection

The intricate engine design, state-of-the-art injection electronics and close-ratio, 6-speed transmission not only help the KTM 125 DUKE to achieve white-knuckle performance, but also extremely low fuel consumption. At the same time, thanks to the regulated catalytic converter, it produces minimal emissions, even when riding at full throttle.

A1 license

The KTM 125 DUKE matches all the A1 driver´s license requirements and thanks to its high power-to-weight ratio, it’s one of the most dynamic options out there for new riders.

Gritty growl
Gritty growl

Exhaust

The KTM 125 DUKE’s lightweight and precision-crafted exhaust system comprises of a side exhaust, link pipe and silencer. The three-chamber silencer has been positioned close to the bike’s overall center of gravity, improving balance and handling, whilst also delivering smooth, instant and beast-like power. Oh, and it looks angry as hell too.

Gritty growl
Flowing performance

Airfilter

Cooling

Precision parts

CNC-parts

02. Chassis

Performance damping
Performance damping

Upside-down fork

The KTM 125 DUKE comes as standard with ultra-lightweight, high-performance upside-down WP forks. Using the latest open-cartridge technology, these forks not only perform above expectations when pushed to the limits, but are also nice and easy to maintain. This makes them perfect for all aspects of riding, from relaxed cruising to hammering around on closed circuits and everything in between.

Shock absorber

Thanks to its progressive 150 mm spring, the KTM 125 DUKE will perform in any environment you can throw at it. The preload is adjustable, so you can count on well-balanced suspension whether you’re riding solo or two-up, with or without luggage, on road or on track. The choice is yours.

Pro alloys
Pro alloys

Wheels

As light as they are stable, the 17 inch cast alloy racing wheels help you put the power down with confidence, utilizing a 110 mm wide tire at the front and an impressive 150 mm at the rear. Wrapped in premium rubber, the pro-spec tires will keep your KTM 125 DUKE glued to the road. They offer outstanding grip in both wet and dry conditions, as well as providing supreme durability, even for riders that know how to push tires to their absolute limits.

Stopping power
Stopping power

Brakes

A high-tech BREMBO braking system works in perfect harmony with the advanced ABS, providing riders with firm, controlled stopping power when they need it most. With a 300 mm brake disc on the front, paired with a 230 mm disc on the rear, the KTM 125 DUKE delivers exceptional pro-level stopping power, and you know what they say: ‘braking harder makes you faster!’.

Superior range
Superior range

Fuel tank

The innovative and ergonomic 13.4 liter steel fuel tank not only provides riders with perfect knee contact for attacking every corner, but also with an unbelievably long range, even when you ride as fast as you dare all day long.

Factory Look

CNC-parts

A winning combination

Chains / Sprockets

Performance damping
Performance damping

Upside-down fork

The KTM 125 DUKE comes as standard with ultra-lightweight, high-performance upside-down WP forks. Using the latest open-cartridge technology, these forks not only perform above expectations when pushed to the limits, but are also nice and easy to maintain. This makes them perfect for all aspects of riding, from relaxed cruising to hammering around on closed circuits and everything in between.

Performance damping

Shock absorber

Thanks to its progressive 150 mm spring, the KTM 125 DUKE will perform in any environment you can throw at it. The preload is adjustable, so you can count on well-balanced suspension whether you’re riding solo or two-up, with or without luggage, on road or on track. The choice is yours.

Pro alloys
Pro alloys

Wheels

As light as they are stable, the 17 inch cast alloy racing wheels help you put the power down with confidence, utilizing a 110 mm wide tire at the front and an impressive 150 mm at the rear. Wrapped in premium rubber, the pro-spec tires will keep your KTM 125 DUKE glued to the road. They offer outstanding grip in both wet and dry conditions, as well as providing supreme durability, even for riders that know how to push tires to their absolute limits.

Pro alloys
Stopping power
Stopping power

Brakes

A high-tech BREMBO braking system works in perfect harmony with the advanced ABS, providing riders with firm, controlled stopping power when they need it most. With a 300 mm brake disc on the front, paired with a 230 mm disc on the rear, the KTM 125 DUKE delivers exceptional pro-level stopping power, and you know what they say: ‘braking harder makes you faster!’.

Stopping power
Superior range
Superior range

Fuel tank

The innovative and ergonomic 13.4 liter steel fuel tank not only provides riders with perfect knee contact for attacking every corner, but also with an unbelievably long range, even when you ride as fast as you dare all day long.

Superior range
Factory Look

CNC-parts

A winning combination

Chains / Sprockets

03. Ergonomics & Comfort

Ultimate control
Ultimate control

Handlebar

Advanced footpeg design
Advanced footpeg design

Footpegs

Aggressive ride position
Aggressive ride position

Seats

Windshield

Hand levers

Ultimate control
Ultimate control

Handlebar

Ultimate control
Advanced footpeg design
Advanced footpeg design

Footpegs

Advanced footpeg design
Aggressive ride position
Aggressive ride position

Seats

Aggressive ride position

Windshield

Hand levers

04. Bodywork & Graphics

Pure BEAST style
Pure BEAST style

Design

At first you notice that LED headlight. That aggressive front. That predatory stance. When you come closer, you feel its steel fuel tank and multiple high-quality cast parts. In the end you realize that the design and production standards of this bike were set sky-high. Just like its big brother, the KTM 1290 SUPER DUKE R, the KTM 125 DUKE looks like a naked, angry, untamed little beast.

TFT display

As an absolute first in its class, the KTM 125 DUKE boasts an innovative multicolor TFT display, presenting all the data you need to go faster in a clear-cut, uncluttered way. As you rev the engine, the display bars change color, either spurring you on or telling you to back off when the engine’s still cold. The display also automatically adapts its color to best suit the light conditions around you. Innovation at its best!!!

LED headlight

The aggressively styled LED headlight on the KTM 125 DUKE is a big highlight in this bike’s design and a clear referral to its big brother, the KTM 1290 SUPER DUKE R. Practical as well as looking ultra-mean, it produces outstanding visibility for riding in low light or dark conditions. The parking light, which consists of 20 LEDs, ensures that the bike is highly visible to other road users, keeping you safe while you dominate the streets.

Menu switch

Different modes for the various built-in assistance systems can be selected using an illuminated menu switch on the left side of the handlebar. It's very simple and intuitive: flick "up" and "down" through the menu, select the desired setting with the right button or go a step back with the left. Job done. Race on.

Cutting-edge materials

Carbon

Pure BEAST style
Pure BEAST style

Design

At first you notice that LED headlight. That aggressive front. That predatory stance. When you come closer, you feel its steel fuel tank and multiple high-quality cast parts. In the end you realize that the design and production standards of this bike were set sky-high. Just like its big brother, the KTM 1290 SUPER DUKE R, the KTM 125 DUKE looks like a naked, angry, untamed little beast.

Pure BEAST style

TFT display

As an absolute first in its class, the KTM 125 DUKE boasts an innovative multicolor TFT display, presenting all the data you need to go faster in a clear-cut, uncluttered way. As you rev the engine, the display bars change color, either spurring you on or telling you to back off when the engine’s still cold. The display also automatically adapts its color to best suit the light conditions around you. Innovation at its best!!!

LED headlight

The aggressively styled LED headlight on the KTM 125 DUKE is a big highlight in this bike’s design and a clear referral to its big brother, the KTM 1290 SUPER DUKE R. Practical as well as looking ultra-mean, it produces outstanding visibility for riding in low light or dark conditions. The parking light, which consists of 20 LEDs, ensures that the bike is highly visible to other road users, keeping you safe while you dominate the streets.

Menu switch

Different modes for the various built-in assistance systems can be selected using an illuminated menu switch on the left side of the handlebar. It's very simple and intuitive: flick "up" and "down" through the menu, select the desired setting with the right button or go a step back with the left. Job done. Race on.

Cutting-edge materials

Carbon

05. Software & Electronics

Technologically-advanced performance
Technologically-advanced performance

Rider aids

The KTM 125 DUKE utilizes market leading technology to enhance your ride and provide you with all the assistance you need to help turn the streets into your own personal playground.

ABS

Dual circuit BOSCH ABS is standard equipment on the KTM 125 DUKE. Use it to your advantage to enhance control and safety.

KTM MY RIDE

The KTM 125 DUKE gives you the handy option to tether your smartphone directly to your bike via the advanced KTM MY RIDE. This easy-to-use upgrade system gives you full control over incoming calls and features a pumping audio player for your favorite riding tunes. All the information pops up on the bike´s display, letting you manage everything from the menu switch, while you keep your hands where they belong – firmly on the bars.

Technologically-advanced performance
Technologically-advanced performance

Rider aids

The KTM 125 DUKE utilizes market leading technology to enhance your ride and provide you with all the assistance you need to help turn the streets into your own personal playground.

Technologically-advanced performance

ABS

Dual circuit BOSCH ABS is standard equipment on the KTM 125 DUKE. Use it to your advantage to enhance control and safety.

KTM MY RIDE

The KTM 125 DUKE gives you the handy option to tether your smartphone directly to your bike via the advanced KTM MY RIDE. This easy-to-use upgrade system gives you full control over incoming calls and features a pumping audio player for your favorite riding tunes. All the information pops up on the bike´s display, letting you manage everything from the menu switch, while you keep your hands where they belong – firmly on the bars.

06. Accessories & Luggage

Navigation

Smart luggage solutions

Luggage

Factory fit

Accessories

Navigation

Smart luggage solutions

Luggage

Factory fit

Accessories

Technical Details

Engine

  • Torque 12 Nm
  • Transmission 6-speed
  • Cooling Liquid cooled
  • Power in KW 11 kW
  • Starter Electric starter
  • Stroke 47.2 mm
  • Bore 58 mm
  • Clutch Wet multi-disc clutch, mechanically actuated
  • CO2 emissions 55 g/km
  • Displacement 124.7 cm³
  • EMS Bosch EMS
  • Design 1-cylinder, 4-stroke engine
  • Fuel consumption 2.42 l/100 km
  • Lubrication Wet sump
  • Power in hp 15 hp

Chassis

  • Tank capacity (approx.) 13.4 l
  • ABS Bosch 9MB Two Channel ABS (disengageable)
  • Front brake disc diameter 300 mm
  • Rear brake disc diameter 230 mm
  • Front brake Four-piston radial fixed calliper, brake disc
  • Rear brake Single-piston floating calliper, brake disc
  • Chain X-Ring 5/8 x 1/4"
  • dry weight 137 kg
  • Frame design Steel trellis frame, powder coated
  • Front suspension WP upside-down Ø 43 mm
  • Ground clearance 185 mm
  • Rear suspension WP monoshock
  • Seat height 830 mm
  • Steering head angle 65 °
  • Suspension travel (front) 142 mm
  • Suspension travel (rear) 150 mm
