01. Engine & Exhaust

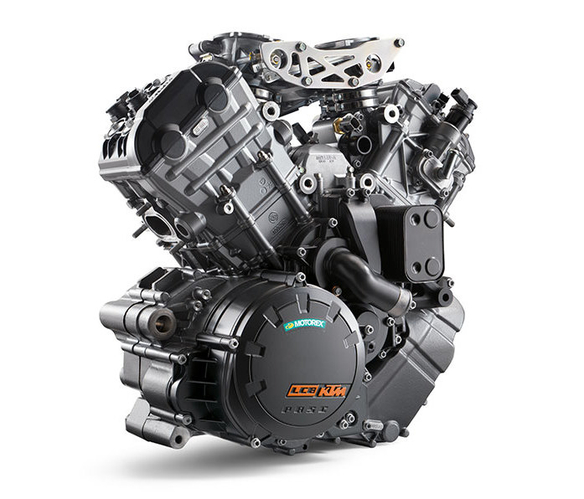

Engine
The engine packs one hell of a punch for fully loaded tours, has truckloads of torque from the bottom up and hardly ever needs hurried downshifts. Therefore, the 1290 S is equally happy cruising around town as it is giving Superbikes a run for their money when the chips are down. With 160 hp and 140 Nm of torque on tap, of which 108 Nm is already available at 2,500 rpm, we wouldn’t bet against it.

Transmission
A spread transmission on the primary wheel transfers the power to the clutch basket without any backlash, which eliminates vibration and reduces engine noise. On the intake sides there is a newly developed resonator chamber, designed to polish the torque output in the lower to mid-range rpms. This substantially increases the smoothness of the KTM 1290 SUPER ADVENTURE R power train.

Power Assist Slipper Clutch
Not only does the slipper clutch open when the engine back-torque becomes too high, it also assists when you open up the throttle. The former prevents destabilizing rear wheel chatter when braking sharply or decelerating; the latter reduces the lever force required for changing gear, allowing the clutch to be controlled with just one trigger happy finger.

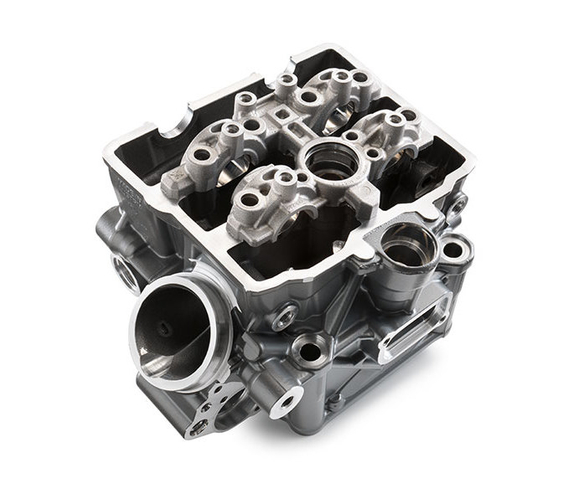

Cylinder heads
A key element in the flawless power delivery of the 75° V-twin is each cylinder’s state-of-the-art 4-valve cylinder head. These combine twin plug ignition, flow-optimized ports and a slick low-friction valve train with cams from each cylinder’s twin overhead camshafts driving DLC-coated cam followers.

DLC coating
DLC (Diamond-Like Carbon) is an extremely hard, durable and tribologically (i.e. in terms of sliding behavior) particularly well-suited coating that KTM uses in many parts (f.e. cam followers). Our engines love it.
Twin ignition
The twin plug ignition system controls the two differently sized spark plugs in each cylinder head independently of each other in order to optimize combustion. The result: more (and more controlled) power, lower fuel consumption and lower emissions. Good for the planet and good for you.

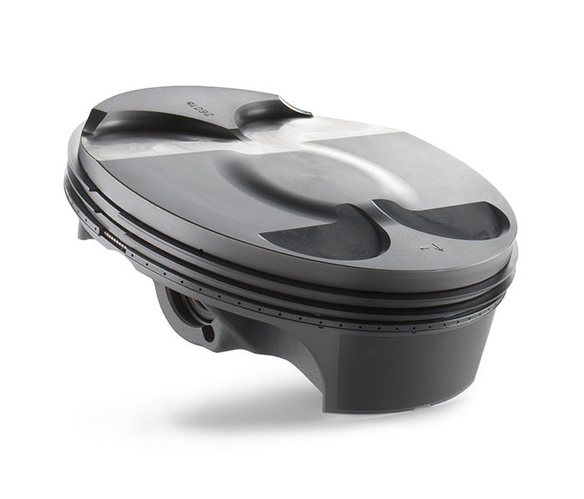

Pistons
The forged piston structure on the KTM 1290 SUPER ADVENTURE R, borrowed from Formula 1 technology, results in a high loading capacity despite its extremely short and lightweight design. Although they have grown in diameter by three millimeters compared to those of the KTM 1190 ADVENTURE, the pistons on the KTM 1290 SUPER ADVENTURE R are a whole 47 grams lighter. This way, reciprocating weight is minimized, thereby maximizing the responsiveness and frivolous nature of the engine. The piston skirts have an additional state-of-the-art, Grafal® finish. Not only does this even further reduce friction, it is also particularly hard-wearing.


Crankshaft
The responsiveness and free-revving nature of the engine are also enhanced by the very low reciprocating weight of its crankshaft. Moreover, the flow-optimized shape of the crank webs boosts the particularly low-loss running of the crank drive.

Overdrive
The sixth gear serves as a long overdrive in the KTM 1290 SUPER ADVENTURE R’s well-spaced gearbox. This saves fuel and adds to your cruising comfort.

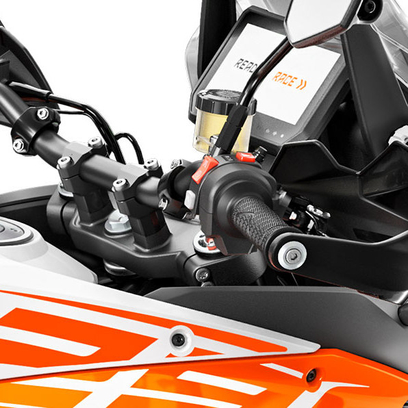

Ride-by-wire
At KTM, ride-by-wire is more than simply the absence of a throttle cable. It’s the guarantee of a smooth throttle response. The KTM 1290 SUPER ADVENTURE R's system ensures perfect application of the readily available and plentiful torque. It also electronically translates the throttle commands of the rider into throttle valve positions perfectly suited to the riding conditions. The RBW system is fully compliant with the strict DIN 26262 safety standard from the automobile sector.


Long service intervals
A unique mix of the highest quality components combined with a fully developed and reliable engine allows extremely long service intervals of 15,000 km. That’s a lot of adventures.


Power-to-weight-ratio
The combination of lightweight chassis engineering and a compact but powerful engine take the KTM 1290 SUPER ADVENTURE S to the top of its class in terms of power-to-weight ratio and ride dynamics. This fully equipped adventure bike tips the scale at 238 kg, while carrying a substantial 23 liters of fuel. This makes the KTM 1290 SUPER ADVENTURE S – in typical KTM style – one of the lightest motorcycles in its segment. Add an outstanding geometry, well-balanced stiffness distribution and high quality suspension components and you end up with a bike that’s ready for anything. This also boosts safety, since it is far easier to fling a nimble motorcycle around a source of danger than a heavy one.

Airfilter

Cooling

CNC-parts
